Steel 304 304L Stainless Steel Crimped Wire Mesh for Mine
Sieve,Crimped Mine Sieving Wire Mesh/Coated Wire Mesh for Mine

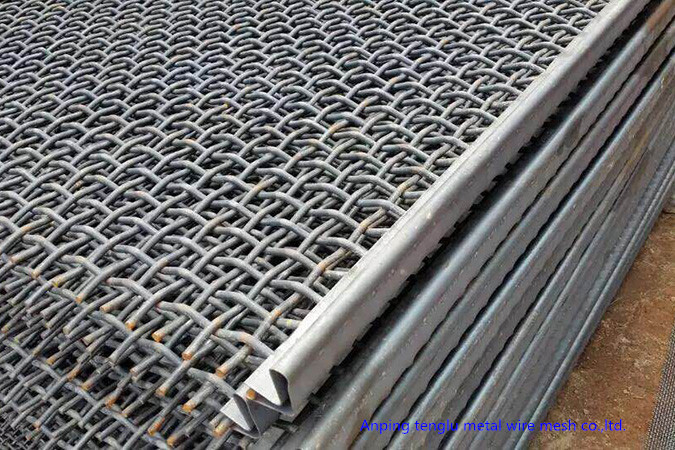

Crimped wire mesh also called square wire mesh is cloth made from
wire strands. The wires that make up wire mesh run parallel to the
width of the roll (cross wires) and parallel to the length (line
wires). The cross and line wires are interwoven. That is, the wires
cross over and under each other. Wire Mesh can be woven in a number
of different styles depending on the material type, wire diameter,
and opening size. Crimped wire mesh is available in rolls, sheets
or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher,
building, house fencing and so on.
1. Material:
High carbon steel wire, low carbon steel wire, galvanized wire,
stainless steel wire and other metal wires.
2. Feature:
It has fine features of neat & precise, sturdy structure, durable&
strongly rust-resistant and fine anti-corrosiveness.
3.Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
4.Application:
Screening in mine, coal factory, construction and other
industries.used as window
screening, safety guards in machinery enclosures, also used in
filtering liquid and gas, sieving grain.
| SWG | Wirediametermm | mesh | Meshsizemm | Weightkg/m2 |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
| No. | Grade | Chemical Composition | Wire diameter |
| | C | Si | Mn | mm |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.0-6.0 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 |
| 4 | 60 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.0-14.0
|
Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
Weaving type:
Plain weave.
Pre-crimped.
Flat top.
Intermediate crimped.
Lock crimped.
Application:
Mainly used as screen mesh, it is widely used in many industries,
such as mining screen, quarrying screen, the screen deck, screen
wire for stone crusher, Classifying Trommel; Vibrating screen; Road
construction equipment; The Asphaltum mix round equipment and the
mine vibrating screens, chemical industry, pharmacy, machinery,
protection, construction.
About our company
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter
of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei
province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh
product,our professional responsible attitude and our strictly
management technique ensure us standing in the leading position of
wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh
specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you
required.
We are specialized in manufacture and export of stainless steel
wire mesh product,if you have request please contact us.We will
provide professional service and guarantee on time delivery.
