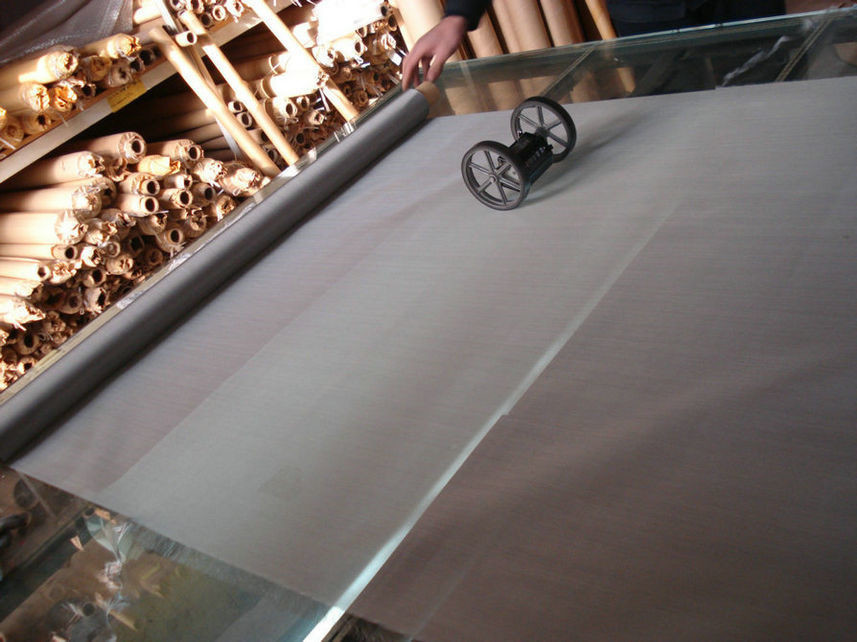

Screen printing mesh for Circuit board,ultra fine stainless steel 304 woven wire mesh,Plain Woven wire mesh

Stainless steel :Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

Material:	SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter:	0.018-2.03mm
Woven style:	plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
Mesh counts:	Plain weave wire mesh can be woven up to 400 mesh. Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details:	inner kraft, outside plastic cloth, put into wooden pallet or case

Stainless steel wire mesh

Plain weave stainless steel wire mesh
Plain weave is the most commonly used and simple of weaving.it adopted one over one under way,As 1*1 weave.The wire hole is square shape.
Twill Weave stainless steel wire mesh
Twill weave is done by passing the weft thread over one or more warp threads and then under two or more warp threads and so on,For example, 2*2,4*4 weave.
Dutch Weave stainless steel wire mesh
It is woven with a large wire diameter in the warp direction and a relatively smaller wire in the weft direction.

Details sheet:

Stainless steel wire mesh plain weave

Mesh/inch	Wire diameter mm	Aperture mm	Mesh/inch	Wire diameter mm	Aperture mm
2mesh	1.8	10.90	60 mesh	0.15	0.273
3 mesh	1.6	6.866	70 mesh	0.14	0.223
4 mesh	1.20	5.15	80 mesh	0.12	0.198
5 mesh	0.91	4.17	90 mesh	0.11	0.172
6 mesh	0.80	3.433	100 mesh	0.10	0.154
8 mesh	0.60	2.575	120 mesh	0.08	0.132
10 mesh	0.55	1.990	140 mesh	0.07	0.111
12 mesh	0.50	1.616	150 mesh	0.065	0.104
14 mesh	0.45	1.362	160 mesh	0.065	0.094
16 mesh	0.40	1.188	180 mesh	0.053	0.088
18 mesh	0.35	1.060	200 mesh	0.053	0.074
20 mesh	0.30	0.970	250 mesh	0.04	0.061
26 mesh	0.28	0.696	300 mesh	0.035	0.049
30 mesh	0.25	0.596	325 mesh	0.03	0.048
40 mesh	0.21	0.425	350 mesh	0.03	0.042
50 mesh	0.19	0.318	500 mesh	0.025	0.0385

Plain dutch weave mesh

Mesh per inch(warp×weft)	Wire diameter(warp×weft)
12×64mesh	0.58×0.40mesh
14×88mesh	0.50×0.33mesh
24×110mesh	0.355×0.25mesh
30×150mesh	0.23×0.18mesh
40×200mesh	0.18×0.14mesh
50×250mesh	0.14×0.11mesh
60×300mesh	0.14×0.09mesh
70×400mesh	0.12×0.08mesh

Twill weave mesh

Type	Wire diameter		aperture
Type	inch	mm	inch	mm
50×50	.010	.250	.0110	.28
50×50	.011	.280	.0120	.31
60×60	.006	.160	.0092	.23
60×60	.007	.180	.0097	.25
70×70	.007	.170	.0078	.20
80×80	.007	.180	.0060	.15
80×80	.006	.180	.0070	.18
90×90	.006	.140	.0061	.16
100×100	.005	.120	.0055	.14
110×110	.005	.120	.0051	.1295
120×120	.0037	.0940	.0064	.1168
150×150	.0026	.0660	.0041	.1041
160×160	.0025	.0635	.0038	.0965
180×180	.0023	.0584	.0033	.0838
200×200	.0021	.0533	.0029	.0737
250×250	.0016	.0406	.0024	.0610
270×270	.0016	.0406	.0021	.0533
300×300	.0051	.0381	.0018	.0457
325×325	.0014	.0356	.0017	.0432

Twilled dutch weave mesh

Mesh per inch(warp×weft)	Wire diameter(warp×weft)
24mesh×220mesh	0.3×0.25
20mesh×250mesh	0.3×0.2
50mesh×500mesh	0.14×0.11
80mesh×700mesh	0.1×0.08
165mesh×800mesh	0.071×0.045
200mesh×600mesh	0.071×0.050
200mesh×1400mesh	0.14×0.09
165mesh×1400mesh	0.071×0.04
325mesh×2300mesh	0.035×0.025
400mesh×2800mesh	0.03×0.02

Reverse dutch weave mesh

Mesh per inch25.4mm warp×weft	Wire diameter (warp×weft)	Fineness of filtering micron
48×10	0.5×0.5	330
63×18	0.40×0.60	220
72×15	0.45×0.55	210
100×16	0.35×0.45	190
107×20	0.24×0.60	210
120×16	0.35×0.45	180
132×17	0.32×0.45	170
152×24	0.27×0.40	160
160×17	0.27×0.45	160
170×18	0.27×0.45	160
171×46	0.15×0.30	130
180×20	0.27×0.45	170
200×40	0.17×0.27	120
240×40	0.15×0.25	70
260×40	0.15×0.27	55
290×76	0.09×0.19	40
300×40	0.15×0.25	50
300×80	0.15×0.20	35
400×120	0.058×0.10	30
615×105	0.04×0.11	27
615×125	0.04×0.11	25
615×130	0.04×0.13	22
615×132	0.04×0.11	22
625×104	0.04×0.15	28
720×150	0.036×0.1	17

Screen printing mesh for Circuit board,ultra fine stainless steel 304 woven wire mesh,Plain Woven wire mesh

Our products series

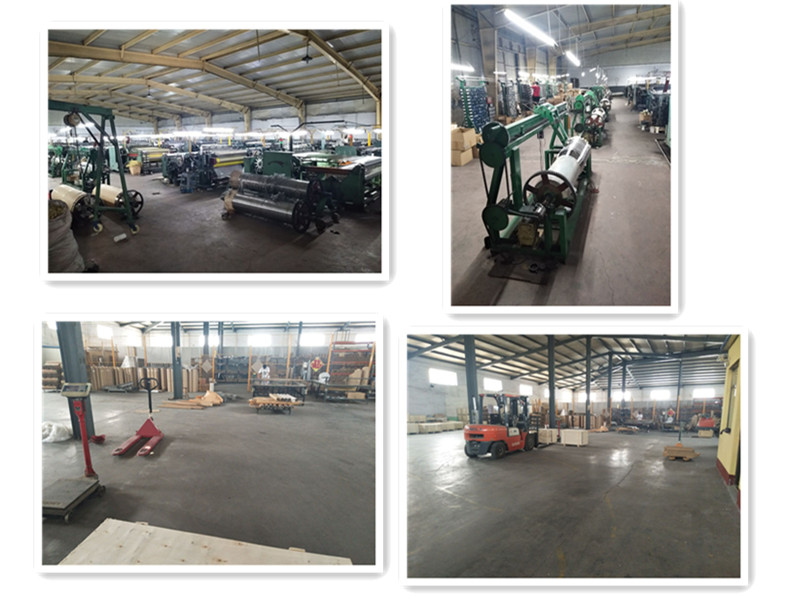

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

We welcome clients from all over the world.
