1.surface treatment: galvanized/pvc
2.mesh size:1/2",3/4",3/8",5/8",1",1-1/4",1-1/2",2" 3",4",5",7-1/2",10"
3.material: high quality low carbon steel wire,stainless steel wire.
4.weaving and characteristic: reverse twisted,galvanized after weaving or galvanized before
weaving,its divided to electroplate
galvanized,hot-dipped,plastic-coating,stainless steel,PVC
coating,etc.
5.Used:used widely in building,oil,chemical breed,plant protect,food
processing reinforce,guard and heat keeping,making net stone cage,
insulated net wall borler cover,poutly,etc.

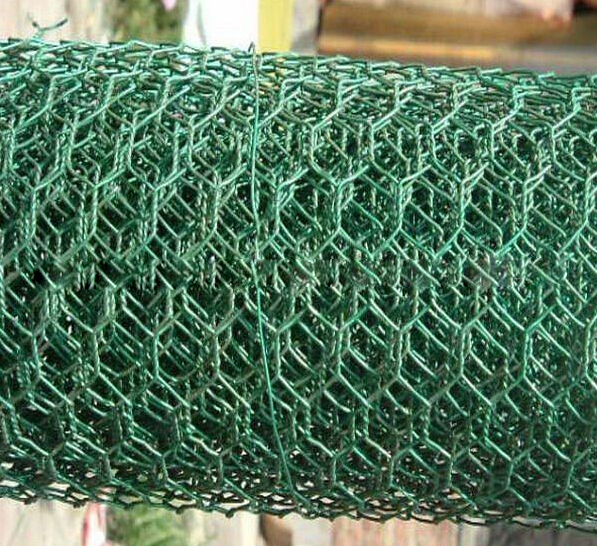

Hexagonal wire netting is also called Chicken wire, its materials
with high quality low carton steel wire or stainless steel wire
etc, as our leading goods, it could make electro galvanized, hot
dipped galvanized and PVC coated , the varieties as follows:
Electro galv. hexagonal wire netting :galv. after weaving
Electro galv. hexagonal wire netting : galv. before weaving
Hot dipped galv. hexagonal wire netting : galv. after weaving
Hot dipped galv. hexagonal wire netting : galv. before weaving
Pvc coated hexagonal wire netting
Stainless steel hexagonal wire netting
The above products could weave in continuous twist or reverse twist
with extension wires.
Galvanized hexagonal wire netting | | mesh | Min. Gal.v. | Width | Wire Gauge (Diameter) | | Inch | mm | Tolerance(mm) | 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 | 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 | 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 | 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 | 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 | 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 | 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 | 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 | 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 | 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 | 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
|
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as
stipulated separately in the column for your reference; Also it is
only for hot dipped Galvanized Netting. |
|
PVC Coated Hexagonal Wire Netting | Mesh | Wire Gauge (MM) | Width | Inch | MM | - | - | 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M | 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M | 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M | 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M | 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M | 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M | We also offer other specifications you need |
|
